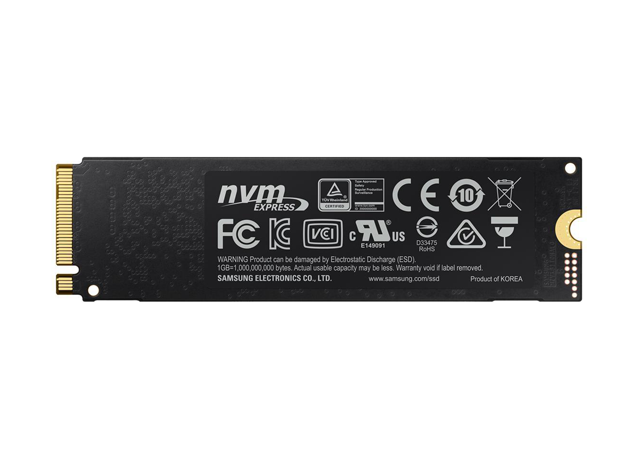

SAMSUNG 970 EVO PLUS M.2 2280 1TB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7S1T0B/AM
Samsung 970 EVO Plus 1TB
» M.2 2280
» 1TB
» PCIe Gen 3.0 x4, NVMe 1.3
Specifications
- Brand : SAMSUNG
- Series : 970 EVO PLUS
- Model : MZ-V7S1T0B/AM
- Device Type : Internal Solid State Drive (SSD)
- Used For : Consumer
- Form Factor : M.2 2280
- Capacity : 1TB
- Memory Components : V-NAND 3-bit MLC
- Interface : PCIe Gen 3.0 x4, NVMe 1.3
- Controller : Samsung Phoenix
- Cache : Samsung 1GB Low Power DDR4 SDRAM
- Max Sequential Read : Up to 3500 MBps
- Max Sequential Write : Up to 3300 MBps
- 4KB Random Read : QD32: Up to 600,000 IOPS
QD1: Up to 19,000 IOPS - 4KB Random Write : QD32: Up to 550,000 IOPS
QD1: Up to 60,000 IOPS - MTBF : 1,500,000 hours
- Power Consumption (Idle) : Max. 30 mW
- Power Consumption (Active) : Average: 6W
Maximum: 9W (Burst mode) - Operating Temperature : 0°C ~ +70°C
- Max Shock Resistance : 1,500G & 0.5 ms (Half sine)
- Height : 2.38mm
- Width : 22.15mm
- Depth : 80.15mm
- Weight : 8.00g
