Cooler Master MasterBox MB530P ATX Mid-Tower w/ 3 x Tempered Glass Panel, Front Side Mesh Intakes & 3 x 120mm Addressable RGB Fans w/ARGB Controller
Cooler Master MasterBox MB530P

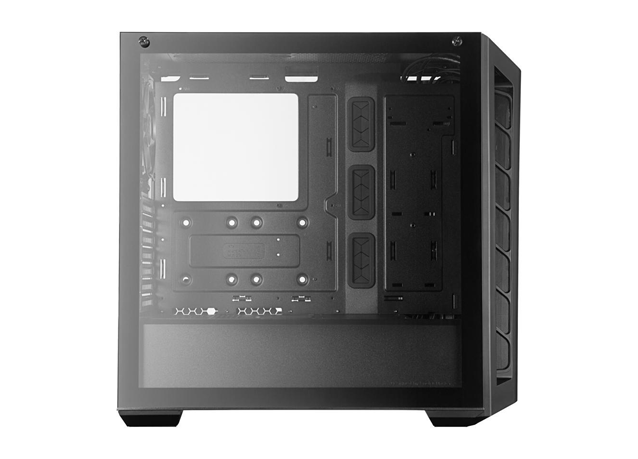

» 3 Tempered Glass Panels - The front and side panel offer a clear view of the front fans and system configuration, while the panel behind the motherboard is patterned tempered glass to hide the open side of the PSU.

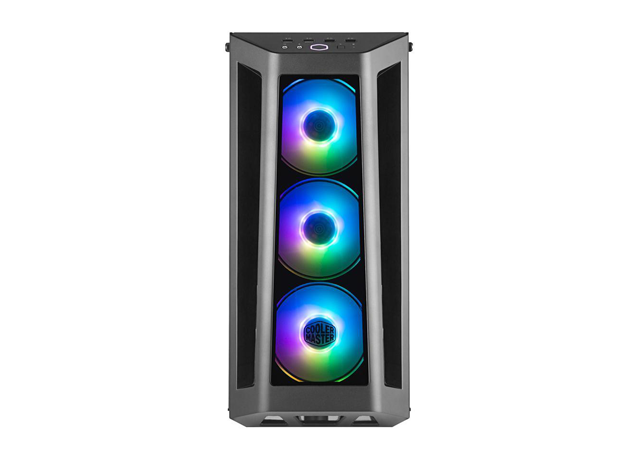

» Addressable RGB Fans - Three pre-installed 120mm addressable RGB fans behind the front panel compliments components for a comprehensive lighting system
» ARGB Lighting Control - Sync the addressable RGB lighting on the power button and fans by connecting the ARGB cable from the I/O panel to the included 2 to 3 ARGB splitter. Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards for a comprehensive lighting system.
» Support for a total of 6 fans & water cooling - Six 120mm fans and front, top and rear water cooling support ensure that you don't have to compromise on performance
» Cable Cover & Routing Space - A PSU shroud, cable cover, and 18~25mm width of space behind the motherboard provide options to keep system configurations clean
Description
- Product Name : MasterBox MB530P
- Model Number : MCB-B530P-KHNN-S01
- Available Color : Black
- Materials : Steel, Plastic, Tempered Glass
- Dimensions (L x W x H) : 489 x 229 x 469mm
- Motherboard Support : ATX, Micro-ATX, Mini-ITX
- Expansion Slots : 7
- 5.25" Drive Bays : N/A
- 3.5" Drive Bays : 2
- 2.5" Drive Bays : 4
- I/O Panel : 3c USB 3.0, 2x USB 2.0, Audio In/Out, ARGB Control Button
- ARGB Controller : ARGB Controller Included
- ARGB Cable : 2-to-3 ARGB Splitter Cable Included
- Pre-Installed Fan(s) : Front: 3x 120mm ARGB AB Fans (9-Blades Fan 1,200RPM)
Rear: 1x 120mm Non-Led Fan (7-Blades Fan 1,200RPM) - Fan Support : Front: 3x 120mm / 2x 140mm
Top: 2x 120mm / 2x 140mm
Rear: 1x 120mm - Radiator Support : Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240mm
Rear: 120mm - Clearances : CPU Cooler: 165mm / 6.49"
PSU: 180mm / 7.08"
Graphics Card: 410mm / 16.14" - Cable Routing : Behind Motherboard Tray Space: 18-25mm
- Dust Filters : Front, Top, Bottom
- Power-Supply Support : Bottom Mount, ATX
Specifications
- Brand : Cooler Master
- Series : MasterBox MB530P
- Model : MCB-B530P-KHNN-S01
- Type : ATX Mid Tower
- Color : Black
- Case Material : Steel / Plastic / Tempered Glass
- With Power Supply : No
- Power Supply Mounted : Bottom
- Motherboard Compatibility : Micro ATX / ATX / Mini-ITX
- Side Panel Window : Yes
- LED : RGB
- Dust Filters : Bottom / Front / Top
- Internal 3.5" Drive Bays : 2
- Internal 2.5" Drive Bays : 4
- Expansion Slots : 7
- Front Ports : 2 x USB 2.0 / 2 x USB 3.0 / Audio In&Out / ARGB control button
- Fan Options : Front: 3 x 120mm (3 x 120mm ARGB AB fans Pre-installed) / 2 x 140mm fan
Top: 2 x 120mm / 2 x 140mm fan
Rear: 1 x 120mm fan (Pre-installed)
ARGB Controller included
2 to 3 ARGB Splitter cable included - Radiator Options : Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm
- Max GPU Length : 410 mm
- Max CPU Cooler Height : 165 mm
- Max PSU Length : 224 mm
- Dimensions (H x W x D) : 18.46" x 9.02" x 19.25"
