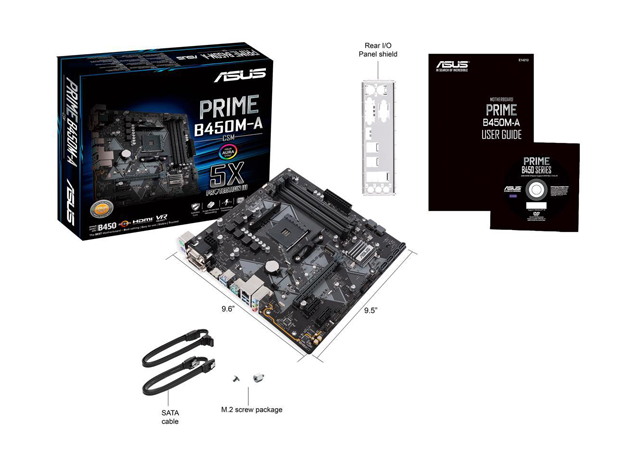

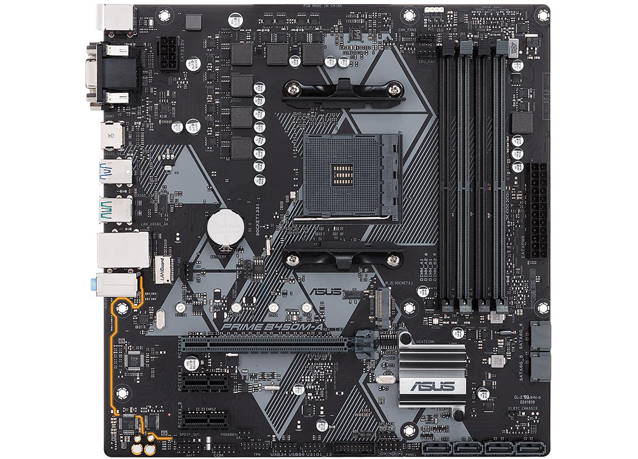

AMD ASUS Prime B450M-A

ASUS PRIME B450M-A/CSM AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

AMD ASUS Prime B450M-A

» Powered by 2nd generation AMD Ryzen AM4 processors to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, DDR4 and Gigabit LAN
» ASUS Corporate Stable Model complimentary Advance Replacement and long lifecycle with a COM header and PS2 ports for legacy needs
» 5X Protection III hardware-level safeguards provide component longevity and reliability
» Aura Sync RGB header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
» Unique SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs

Specifications

  • Brand : ASUS
  • Model : PRIME B450M-A/CSM
  • CPU Socket Type : AM4
  • CPU Type : AM4 socket for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors
    * Refer to www.asus.com for the AMD CPU support list.
  • Chipset : AMD B450
  • Number of Memory Slots : 4×288pin
  • Memory Standard : DDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
  • Maximum Memory Supported : 64GB
  • Channel Supported : Dual Channel
  • PCI Express 3.0 x16 : AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD Ryzen with Radeon Vega Graphics Processor
    1 x PCIe 3.0/2.0 x16 (x8 mode)
  • PCI Express x1 : 2 x PCI Express 2.0 x1 slots
  • SATA 6Gb/s : AMD B450 chipset:
    4 x SATA 6Gb/s port(s)
    AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:
    2 x SATA 6Gb/s port(s)
  • M.2 : 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support*
    * The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
  • SATA RAID : 0/1/10
  • Onboard Video Chipset : Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics Processors
    Multi-VGA output support: HDMI, DVI-D, D-Sub ports
    - Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DVI-D with max. resolution up to 1920 x 1200 @ 60 Hz
    - Supports D-Sub with max. resolution up to 1920 x 1200 @ 60 Hz
  • Audio Chipset : Realtek ALC887
  • Audio Channels : 8 Channels
    * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  • LAN Chipset : Realtek RTL8111H
  • Max LAN Speed : 10/100/1000Mbps
  • PS/2 : 1 x PS/2 keyboard (purple)
    1 x PS/2 mouse port (green)
  • Video Ports : 1 x DVI-D port
    1 x D-Sub port
  • HDMI : 1 x HDMI
  • RJ45 : 1 x RJ45
  • USB 3.1 : 2 x USB 3.1 Gen 2 ports
    4 x USB 3.1 Gen 1 ports
  • Audio Ports : 3 Ports
  • Onboard USB : 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • Other Connectors : 1 x Aura RGB Strip Header
    1 x TPM header
    1 x COM port(s) connector(s)
    1 x CPU Fan connector(s) (1 x 4-pin)
    2 x Chassis Fan connector(s) (2 x 4-pin)
    1 x S/PDIF out header(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x Speaker connector
  • Form Factor : Micro ATX
  • LED Lighting : RGB
  • Dimensions (W x L) : 9.6" x 9.5"
  • Power Pin : 1 x 24-pin EATX Power connector
    1 x 8-pin ATX 12V Power connector
  • Features : Special Features:
    ASUS 5X Protection III:
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features:
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution:
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2+
    ASUS EZ DIY:
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design:
    - ASUS Q-Slot - ASUS Q-DIMM

    BIOS:
    128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

    Operating System:
    Windows 10 64-bit
