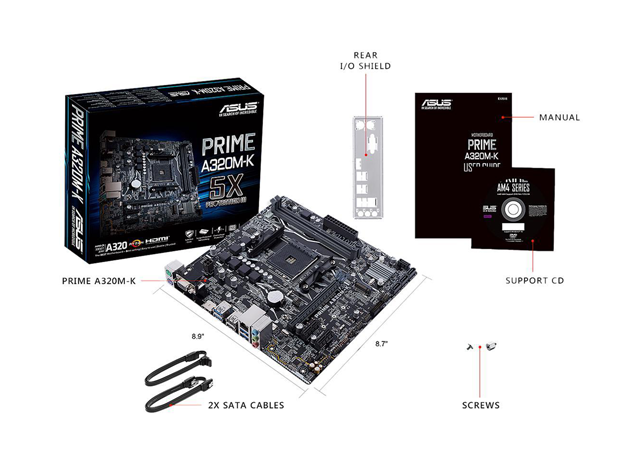

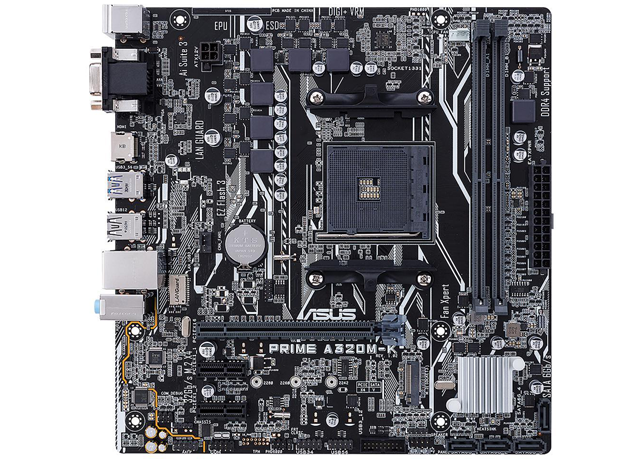

ASUS Prime A320M-K AMD Ryzen AM4 DDR4 HDMI VGA M.2 Micro-ATX A320 Motherboard
AMD ASUS Prime A320M-K
» Powered by AMD Ryzen AM4, 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, support for 32GB of DDR4, USB 3.1 and Gigabit LAN
» 5X Protection III Hardware-level safeguards provide component longevity and reliability
» Unique SafeSlot Core fortified PCIe slot prevents damage from heavyweight GPUs
» Fan Xpert delivers advanced fan controls for optimized cooling
Specifications
- Brand : ASUS
- Model : Prime A320M-K
- CPU Socket Type : AM4
- CPU Type : AMD AM4 Socket Ryzen with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series /Athlon X4 Processors
- Chipset : AMD A320
- Number of Memory Slots : 2×288pin
- Memory Standard : AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133
AMD 7th Generation A-Series/ Athlon X4 Processors
DDR4 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Maximum Memory Supported : 32GB
- Channel Supported : Dual Channel
- PCI Express 3.0 x16 : AMD Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode) - PCI Express x1 : 2 x PCIe 2.0 x1
- SATA 6Gb/s : 4 x SATA 6Gb/s port(s), gray
- M.2 : AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
AMD 7th Generation A-series/Athlon Processors:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode) - SATA RAID : 0/1/10
- Onboard Video Chipset : Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support: HDMI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048MB (for iGPU exclusively) - Audio Chipset : Realtek ALC887
- Audio Channels : 8 Channels
- LAN Chipset : Realtek RTL8111H
- Max LAN Speed : 10/100/1000Mbps
- PS/2 : 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green) - Video Ports : 1 x D-Sub
- HDMI : 1 x HDMI
- RJ45 : 1 x RJ45
- USB 3.1 : 4 x USB 3.1 Gen 1 (blue)
- USB 1.1/2.0 : 2 x USB 2.0
- Audio Ports : 3 Ports
- Onboard USB : 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - Other Connectors : 1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector - Form Factor : Micro ATX
- Dimensions (W x L) : 8.9" x 8.7"
- Power Pin : 1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s) - Features : Special Features:
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System:
Windows 10 64-bit
